Fitment
Will it clear my brakes?
Order
Order a set from Japan
Pick your set
Filter by PCD, diameter, width, colour and offset. Can't find what you're looking for? Contact us.
Pay your way
Japan sets: pay the deposit shown on the set (usually 35%, some 100%) by bank transfer. Any balance before it ships.
Delivery or pickup
Insured, tracked courier delivery Australia-wide (Sydney next business day), or pick up from Matraville NSW.
Filter wheels
1 set

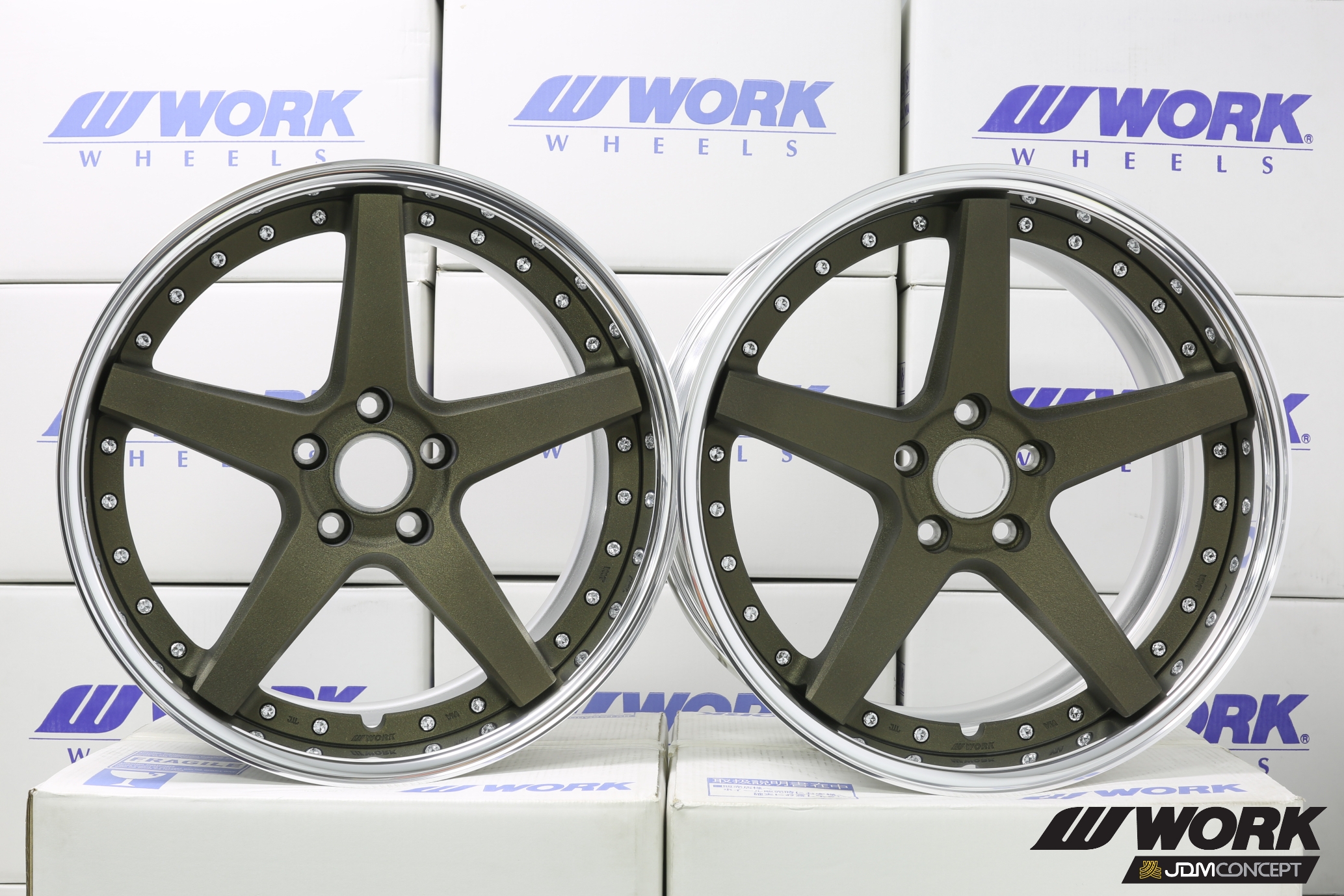

Gnosis CVF · Texture Dark Brass
Polished flat lip · Chrome rivets
F 5-114.3 19×9.0 +31 A-disk
R 5-114.3 19×10.0 +37 W-disk
No set in that combination.
Showing of sets
Custom build · any spec
Can’t see your spec? We’ll build it.
Tell us your car
and the size, offset & finish you want
We reply
within 1 business day
Order & we build it
pay the deposit and we start your build
Completes the set
Genuine WORK nuts and rings that fit the Gnosis CVF.
| Thread | Compatible with |
|---|---|
| M12 × 1.25 | All Nissan · All Subaru · All Suzuki |
| M12 × 1.50 | All Honda (except FK8) · All Mazda · All Mitsubishi · All Toyota |
Note: Toyota 86 / Subaru BRZ use the M12 × 1.25 thread.
- WORK wheel nuts are tapered, designed to match all WORK wheels.
- Excludes discontinued models: Equip 01 and Equip 03.
- May not clear some Emitz centre-disk models.
- May also suit other brands with tapered seats.
- If you’re unsure, please ask before ordering.
RS Nuts · Blue
M12 × 1.25 · Hex 21 · 34mm
RS Nuts · Black
M12 × 1.50 · Hex 21 · 34mm
RS Nuts · Blue
M12 × 1.50 · Hex 21 · 34mm
RS Nuts · Red
M12 × 1.50 · Hex 21 · 34mm
Royal Nuts · Chrome
M12 × 1.25 · Hex 21 · 33mm
RC Nuts · Blue
M12 × 1.25 · Hex 19 · 50mm
RC Nuts · Red
M12 × 1.25 · Hex 19 · 50mm
RC Nuts · Black
M12 × 1.50 · Hex 19 · 50mm
RC Nuts · Blue
M12 × 1.50 · Hex 19 · 50mm
RC Nuts · Red
M12 × 1.50 · Hex 19 · 50mm
RS-B Nuts Billet M12/M14 · Black
M12 × 1.25 · Hex 21 · 31mm
RS-B Nuts Billet M12/M14 · Chrome
M12 × 1.25 · Hex 21 · 31mm
RS-B Nuts Billet M12/M14 · Black
M12 × 1.50 · Hex 21 · 31mm
RS-B Nuts Billet M12/M14 · Chrome
M12 × 1.50 · Hex 21 · 31mm
RS-B Nuts Billet M12/M14 · Black
M14 × 1.50 · Hex 21 · 35mm
RS-B Nuts Billet M12/M14 · Chrome
M14 × 1.50 · Hex 21 · 35mm
RS Nuts · Black
M12 × 1.25 · Hex 21 · 34mm
RS Nuts · Red
M12 × 1.25 · Hex 21 · 34mm
Royal Nuts · Chrome
M12 × 1.50 · Hex 21 · 37mm
RC Nuts · Black
M12 × 1.25 · Hex 19 · 50mm
RC Nuts · Green
M12 × 1.25 · Hex 19 · 50mm
RC Nuts · Orange
M12 × 1.25 · Hex 19 · 50mm
RC Nuts · Purple
M12 × 1.25 · Hex 19 · 50mm
RC Nuts · Green
M12 × 1.50 · Hex 19 · 50mm
RC Nuts · Orange
M12 × 1.50 · Hex 19 · 50mm
RC Nuts · Purple
M12 × 1.50 · Hex 19 · 50mm
RCS Nuts M14 × 1.50 · Black
M14 × 1.50 · Hex 21 · 50mm
RS-Z Bolts Billet (Euro) · Black
M14 × 1.25 · Hex 17 · 28mm
RS-Z Bolts Billet (Euro) · Black
M14 × 1.50 · Hex 17 · 28mm
RS-Z Bolts Billet (Euro) · Chrome
M14 × 1.50 · Hex 17 · 28mm
WORK hub rings are machined from aluminium for strength and durability. They fill the gap between your car's hub and the wheel's centre bore — WORK sizes its centre bores to suit most cars, so most fitments leave a small gap.
Left unfilled, that gap can cause vibration. The ring makes the fit hubcentric — centring the wheel and removing the vibration.
Not sure which ring suits your vehicle? Ask us before ordering.
* Please check which model is compatible.
60.1 → 54mm
Toyota · Mazda · Daihatsu (PCD 100)
66.5 → 57mm
Audi · VW (PCD 112)
72.5 → 64mm
Honda Civic Type R FK8 / FL5 (PCD 120)
73.3 → 56mm
Subaru (PCD 114.3)
73.3 → 60mm
Toyota · Lexus (PCD 114.3)
73.3 → 64mm
Honda (PCD 114.3)
73.3 → 66mm
Nissan (PCD 114.3)
73.3 → 67mm
Mitsubishi · Mazda (PCD 114.3)
73.3 → 70mm
Honda S2000 (PCD 114.3)
60.1 → 56mm
Honda · Mitsubishi · Subaru · Toyota 86 / BRZ · BMW MINI (PCD 100)
60.1 → 57mm
VW (PCD 100)
Finishes
The Gnosis CVF in every finish

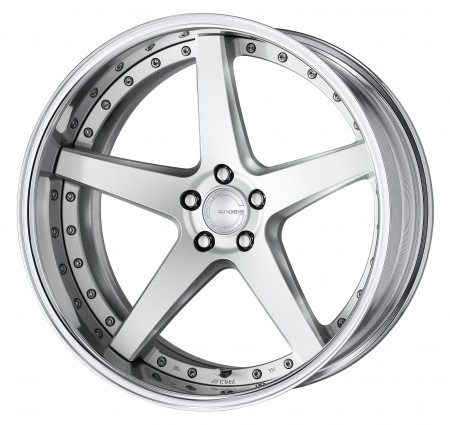

Matt Silver
MSL Deep concave centre disk, polished anodized flat rim with chrome rivets

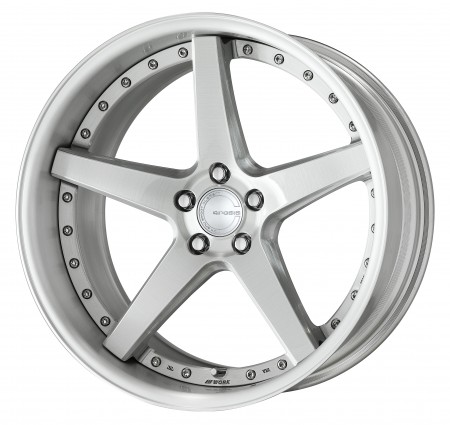

Brushed
BRU Deep concave centre disk, polished anodized flat rim with chrome rivets

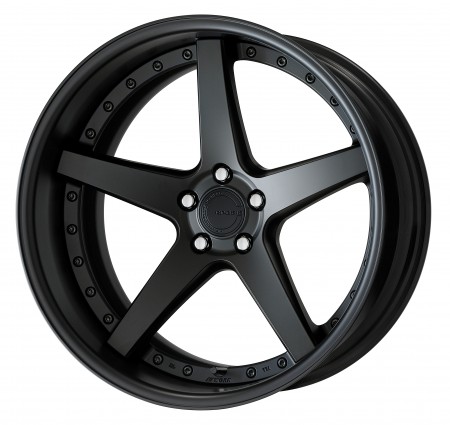

Matt Black
MBL Deep concave centre disk, matt black anodized flat rim with black rivets

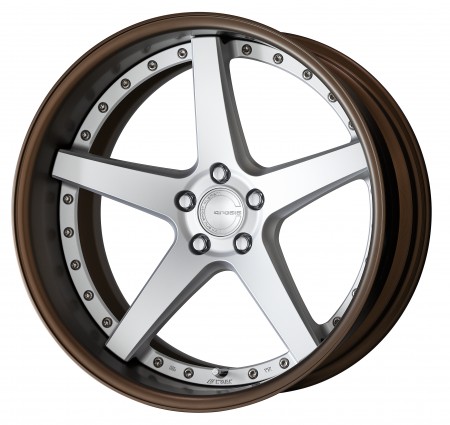

Matt Silver
MSL Deep concave centre disk, matt black anodized flat rim with chrome rivets

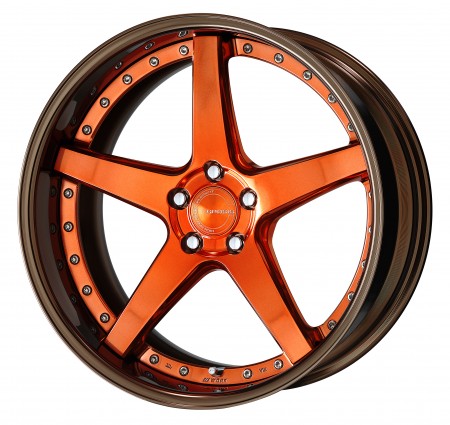

Buffed Finished With Copper Clear Coat
P2C2 Middle concave centre disk, gloss bronze anodized flat rim with chrome rivets

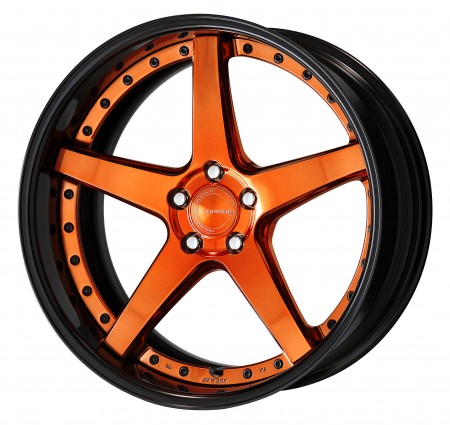

Buffed Finished With Copper Clear Coat
P2C2 Middle concave centre disk, gloss black anodized flat rim with black rivets

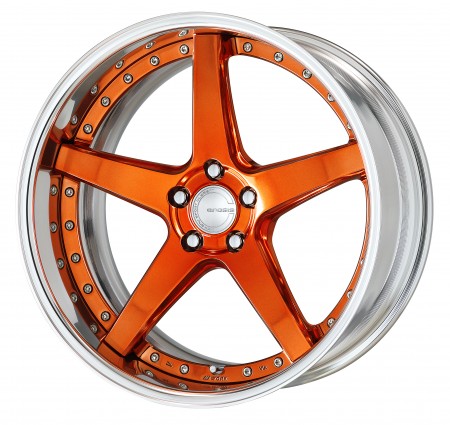

Buffed Finished With Copper Clear Coat
P2C2 Middle concave centre disk, polished anodized flat rim with chrome rivets
Composite Buffing Brushed
PBU Middle concave centre disk, polished anodized flat rim with chrome rivets

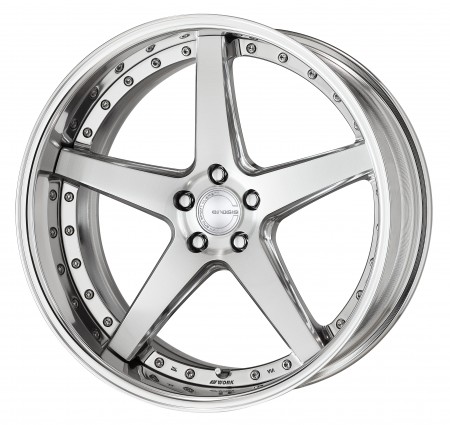

Buffing Finished
PP2 Middle concave centre disk, polished anodized step rim with chrome rivets
Sizing
19", 20", 21", 22"
Centre disk type
• A disk - Standard brake clearance
• O disk - Small brake clearance with deep rim
• H disk - Standard brake clearance
• W disk - Small brake clearance with deep rim
• R disk - Big caliper brake clearance
Included with each wheel
1 X Air Valve
1 X Centre Cap
19 INCH [FLAT RIM] - PCD, Width, Disk Type & Offset
PCD: 5H-108 to 120.65
Width: 19 X 7.5 to 19 X 12.5
Disk Type
• A disk - Standard brake clearance [Middle concave]
• O disk - Small brake clearance with deep rim [Middle concave]
• H disk - Standard brake clearance [Deep concave]
• W disk - Small brake clearance with deep rim [Deep concave]
Offset: Download PDF chart above to see options.
20 INCH [FLAT RIM] - PCD, Width, Disk Type & Offset
PCD: 5H-108 to 120.65
Width: 20 X 8.0 to 20 X 12.5
Disk Type
• A disk - Standard brake clearance [Middle concave]
• O disk - Small brake clearance with deep rim [Middle concave]
• R disk - Big caliper brake clearance [Middle concave]
• H disk - Standard brake clearance [Deep concave]
• W disk - Small brake clearance with deep rim [Deep concave]
Offset: Download PDF chart above to see options.
20 INCH [STEP RIM] - PCD, Width, Disk Type & Offset
PCD: 5H-108 to 120.65
Width: 20 X 8.0 to 20 X 12.5
Disk Type
• A disk - Standard brake clearance [Middle concave]
• O disk - Small brake clearance with deep rim [Middle concave]
• H disk - Standard brake clearance [Deep concave]
• W disk - Small brake clearance with deep rim [Deep concave]
Offset: Download PDF chart above to see options.
21 INCH [FLAT RIM] - PCD, Width, Disk Type & Offset
PCD: 5H-108 to 120.65
Width: 21 X 8.5 to 21 X 11.5
Disk Type
• A disk - Standard brake clearance [Middle concave]
• O disk - Small brake clearance with deep rim [Middle concave]
• R disk - Big caliper brake clearance [Middle concave]
• H disk - Standard brake clearance [Deep concave]
• W disk - Small brake clearance with deep rim [Deep concave]
Offset: Download PDF chart above to see options.
21 INCH [STEP RIM] - PCD, Width, Disk Type & Offset
PCD: 5H-108 to 120.65
Width: 21 X 8.5 to 21 X 12.5
Disk Type
• A disk - Standard brake clearance [Middle concave]
• O disk - Small brake clearance with deep rim [Middle concave]
• R disk - Big caliper brake clearance [Middle concave]
• H disk - Standard brake clearance [Deep concave]
• W disk - Small brake clearance with deep rim [Deep concave]
Offset: Download PDF chart above to see options.
22 INCH [STEP RIM] - PCD, Width, Disk Type & Offset
PCD: 5H-108 to 120.65
Width: 22 X 8.5 to 22 X 12.5
Disk Type
• A disk - Standard brake clearance [Middle concave]
• O disk - Small brake clearance with deep rim [Middle concave]
• R disk - Big caliper brake clearance [Middle concave]
• H disk - Standard brake clearance [Deep concave]
• W disk - Small brake clearance with deep rim [Deep concave]
Offset: Download PDF chart above to see options.
Center Disk colour options
Standard
• Matt Silver [MSL]
• Matt Black [MBL]
Standard Premium
• Brushed [BRU]
• Composite Buffing Brushed [PBU]
• Buffing Finished [PP2]
Premium
• White [WHT]
• Gold [GLD]
• Platinum Gold [PG]
• Hyper Gold [HPG]
• AHG2 Bronze [AHG2]
• Light Gray Silver [LGS]
• Gloss Silver [SIL]
• Matt Gunmetal [MGM]
• Gloss Gunmetal [GM]
• Gloss Black [BLK]
Premium [Clear Color]
• Black Imperial Gold [BPI]
• Black Clear Red [BCR]
• Black Clear Blue [BCB]
• Black Clear Bronze [BPB]
• Black Clear Gray [BPA]
• Matt Brushed [MBU]
Premium [Matt Gray Brushed]
• Matt Gray Brushed [MBUA]
Premium [Copper Clear]
• Composite Buffed Brushed with Copper Clear [PUC2]
• Buffed Finished with Copper Clear [P2C2]
Premium [Powder Coating]
• Texture Dark Brass [TXDB]
• Texture Charcoal Gray [TXCG]
• Texture Navy Blue [TXNB]
Barrel [rim] colour options
Standard
• Polished anodized rim
Premium
• Brushed anodized rim
• Gloss Bronze anodized rim
• Matt Bronze anodized rim
• Gloss Black anodized rim
• Matt Black anodized rim
Pierce bolt [rivet] colour options
Standard
• Chrome
• Black
Premium
• Black Chrome
• Gold
• Titan
Catalogue
Can't see your spec?
If WORK makes it, we can build it. Send us your car and the size, offset, PCD and finish you're after — we'll check brake clearance and quote it.
Frequently asked questions
Yes — every wheel is 100% genuine WORK, shipped direct from WORK Wheels Japan to our Sydney warehouse. Never a replica. We’ve been the official Australian distributor since 2006, and you can verify us on the WORK Wheels Japan website. We’re JDM Concept Pty Ltd, ACN 43 120 929 713, trading from the same Sydney warehouse and the same domain since 2006.
Ask us before you buy. Send your car and the model you’re after, and we’ll tell you what clears your brakes, based on real cars we’ve fitted. Guard clearance and tyre setup we leave to your mechanic: confirm those, then send us the spec and we’ll quote it.
In stock: tap Buy and pay by bank transfer (Westpac) — or Zip only when every item in the order is in stock. Built to order in Japan: send us your car and spec, we reply within 1 business day with a quote and ETA, then a deposit — 35% in most cases — locks the build in, or pay in full. Every order gets a tax invoice. We don’t take card or PayPal — it keeps pricing sharp.
Yes — made to order to your diameter, width, offset, PCD and finish. Most models support 4x100, 4x114.3, 5x100, 5x112, 5x114.3 and 5x120. Singles and pairs available too.
Wheel prices already include GST and import duties, so there’s nothing extra to pay at customs. Delivery is by insured courier, quoted before you pay, fully insured and tracked. Sydney next business day; most capitals 1–3 days. Japan orders get an ETA, with a heads-up about a week before they land. Or pick up by appointment from Matraville NSW, Sydney 2036.
